› 4-ch simultaneous charging
› 2A charging current per channel
› Snap-on exchangeable DV plates
› Mixed types of DV batteries charging
› SONY BP-U/NP-F, Panasonic CGA/VBD,
Canon BP-9/LP-E6 plates option;
› 4-LED charging indicators

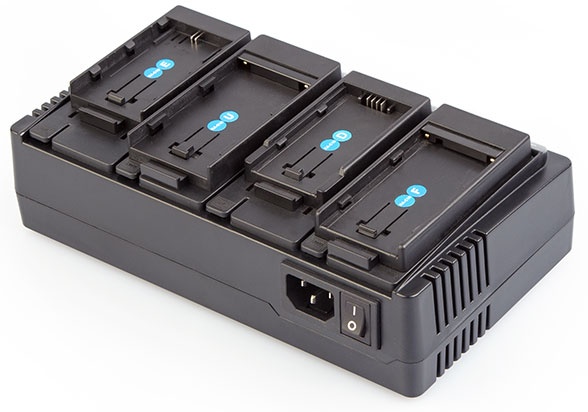

4-channel DV Charger
2A per channel

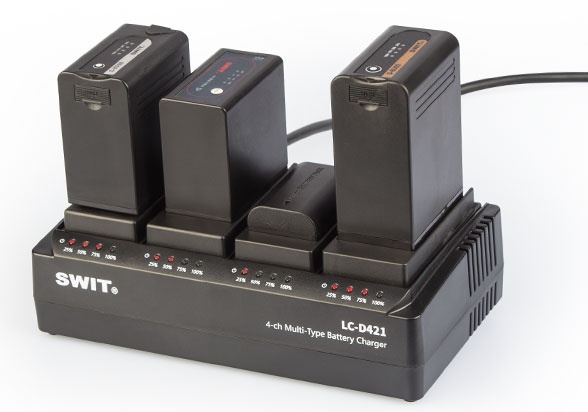

LC-D421 can charge 4 DV batteries simultaneously,
with 2A charging current per channel. Users can
exchange different types of battery plate to charge
different types of DV batteries together.

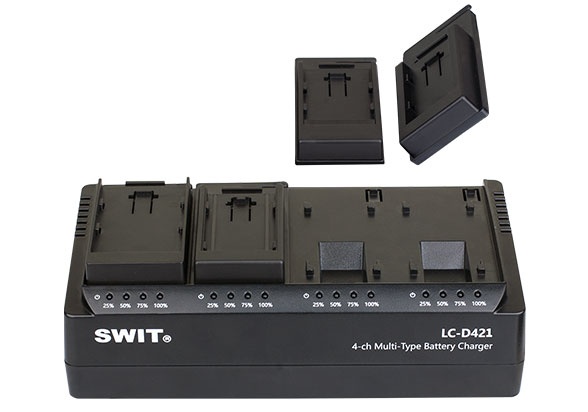

Exchangeable DV Plates

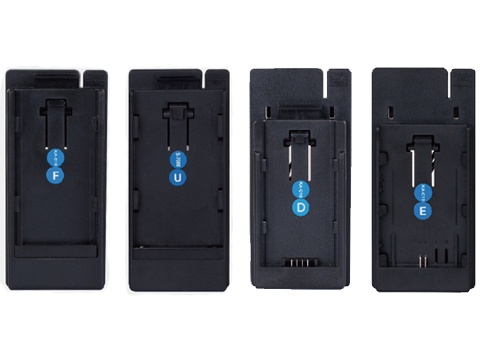

You can select the following snap-on quick exchangeable DV
plates to mount on LC-D421, to charge different batteries:
KA-C10U: SONY BP-U type
KA-C10F : SONY NP-F type
KA-C10D : Panasonic CGA, AG-VBR59
KA-C10C: Canon BP-945 type
KA-C10E : Canon LP-E6

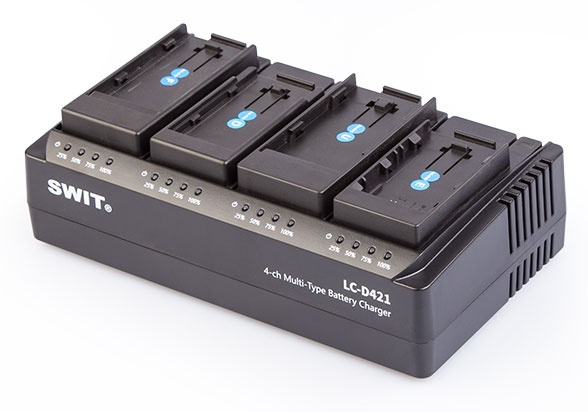

LED Charging Indicators
LC-D421 charger has 4-LED indicators for
each charging channel, and display the re-
al-time battery capacity level.
In case of the 4 LEDs are all flashing or all
off, please check the connection condition
of the batteries and plates, and restart the
charger.
Input | 100～240VA, 50/60Hz |
Power consumption | power 100W |
Charging output | DC 16.8V, 2A×3 or 1.5A×4 for 14.4V batteries DV 8.4V, 2A×4 for 7.2V DV batteries |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Dimensions | 220mm×125mm×69.3mm |
Net weight | Net 706g; With package 1.04kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

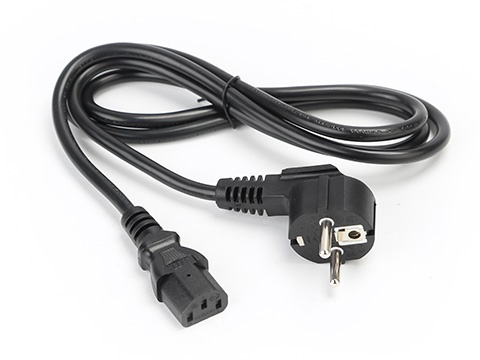

AC power cable
-
KA-C10 Plate x4 (U/F/D/C/E Selection)
-

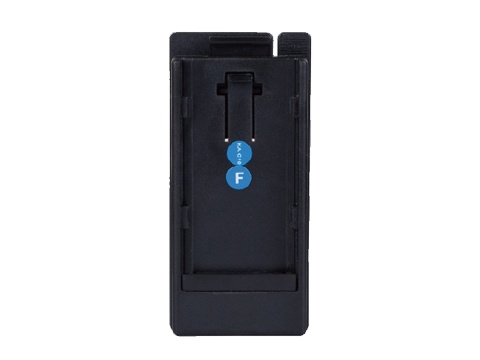

KA-C10F
SONY NP-F DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

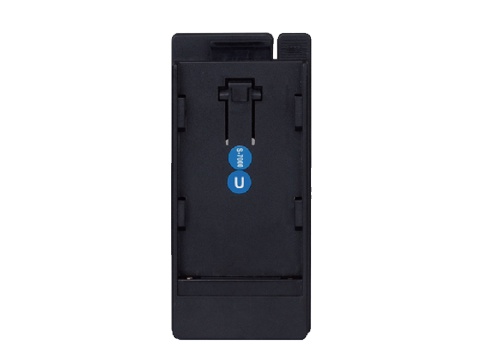

KA-C10U
SONY BP-U DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

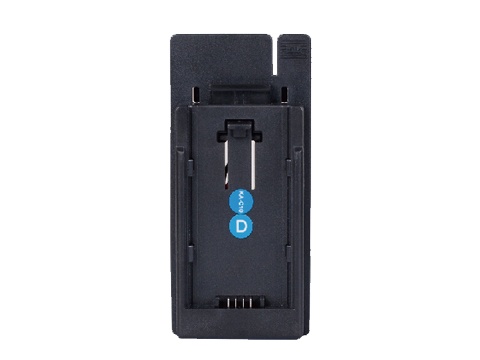

KA-C10D
Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

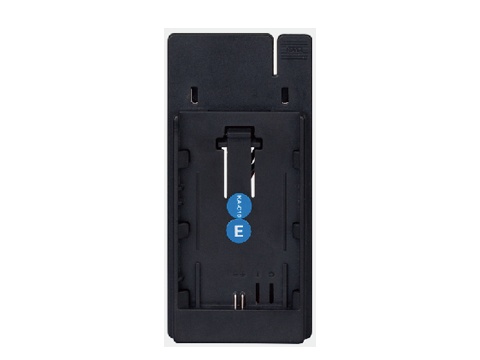

KA-C10E
Canon DSLR Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

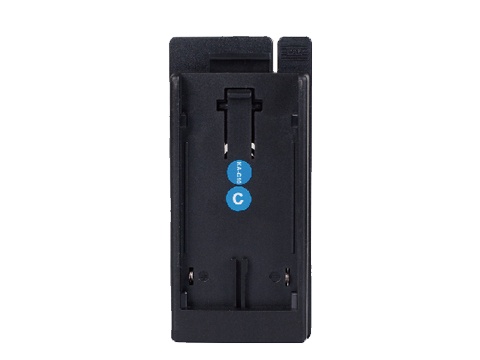

KA-C10C
Canon BP DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable.
-
LB-SU98
SONY BP-U Camcorder Battery Pack
98Wh, for SONY Z380/Z280, FX6/FX9, HXR-NX800, Blackmagic PYXIS, etc; D-tap output, USB output; LED power indicators,
-
LB-SU75
SONY BP-U Camcorder Battery Pack
75Wh, for SONY Z380/Z280, FX6/FX9, HXR-NX800, Blackmagic PYXIS, etc; D-tap output, USB output; LED power indicators,
-
LB-SU90C
SONY BP-U Series Battery Pack
90Wh, with D-tap and USB-C 45W in and out, SONY Z380/Z280, FX6/FX9, HXR-NX800, Blackmagic PYXIS, etc
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
