› 150W Warm White LEDs + 150W Cold White LEDs
› Mini Bowens mount compact size
› Provide Mini to Standard Bowens adaptor
› 24,000Lux @ 1m ultra bright with reflector
› Support Fan-Off completely silent mode
› 0-100% Smooth flick-free dimming
› Linear, Log, Exponential, S- dimming curves
› 2700K-6500K continuous adjustment
› CRI Ra 98, TLCI 98, SSI(D55) 73
› Built-in multiple light effects selection
› IOS/Android Bluetooth APP control
› On-board V-mount battery plate
› USB-C PD2.0/3.0/3.1 power input
› Support firmware update via USB-C
› With 5/8" baby pin light stand bracket
› With Mini Bowens reflector and diffuser
› Optional purchase Mini Bowens soft box
› Optional purchase 150W USB-C power adaptor

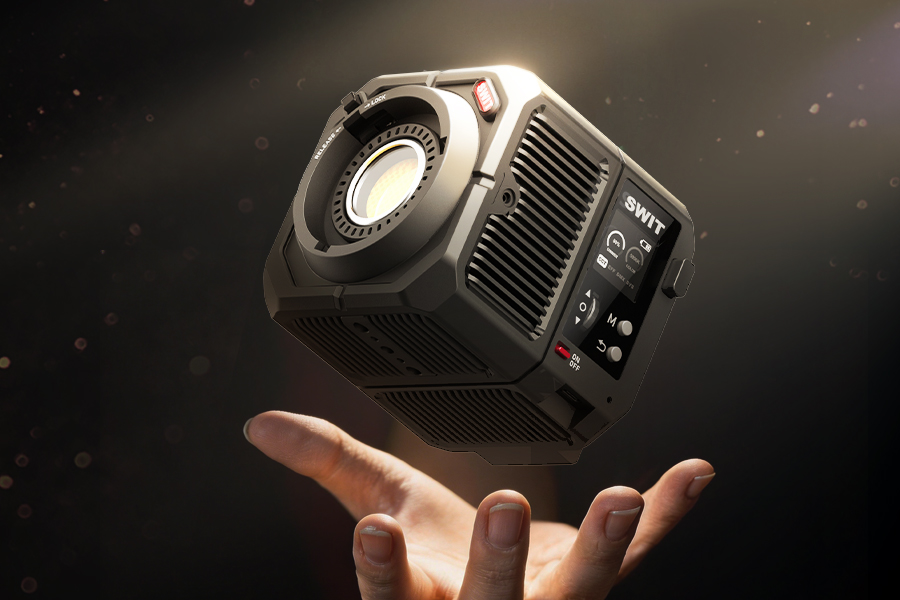

Infinite Creation Packed in Your Palm

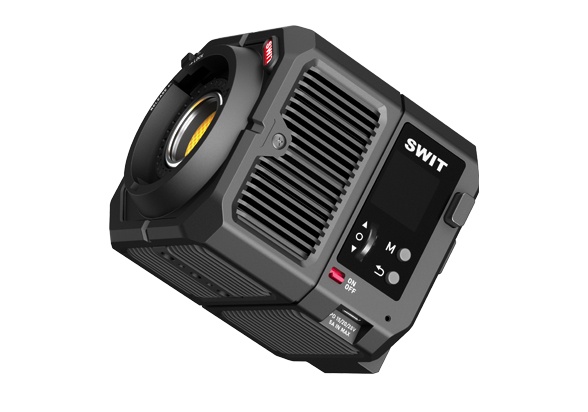

The 150W Mini-Bowens COB-LED Light
Mini-150B is a palm-sized 150W bi-color COB-LED light featuring a
Mini Bowens mount. It delivers a high intensity of 24,000 Lux at 1
meter, on-board V-mount plate and convenient USB-C power, and
supports smart device app control. As a compact modifier
ecosystem, it's ideal for creators, interviews, livestreaming,
podcasts, mobile filmmaking, and compact studio production.

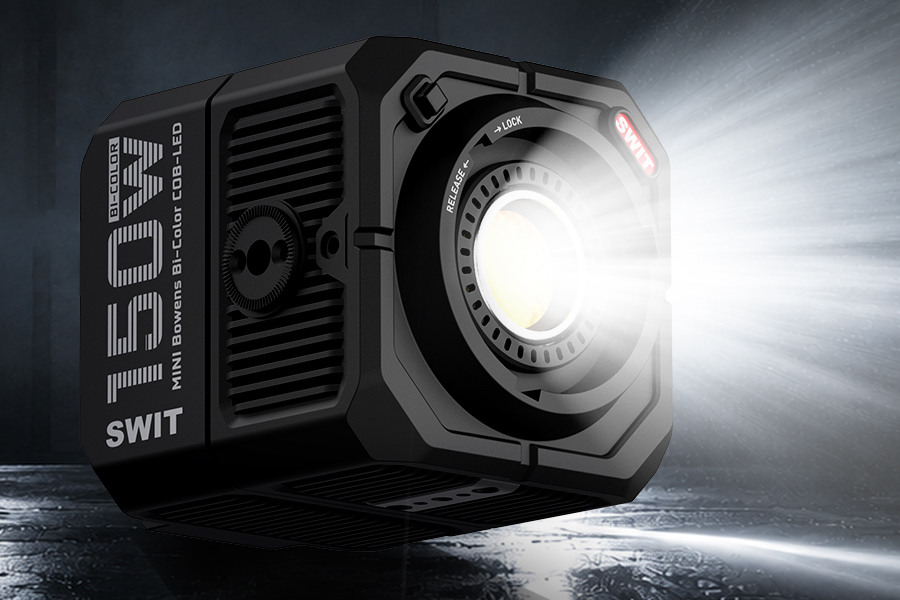

True 150W Power
150W 2700K LEDs + 150W 6500K LEDs
Mini-150B is combined with 150W 2700K LEDs and 150W
6500K LEDs, outputs True 150W at any color temperature.
2700K-6500K Continuously Color Temp
The wide color temperature adjustment offers exceptional flexibility for diverse shooting scenarios, whether
indoor or outdoor, allowing creators to match any ambient environment or creative mood with ease.
Accurate Color, Precise Light Control

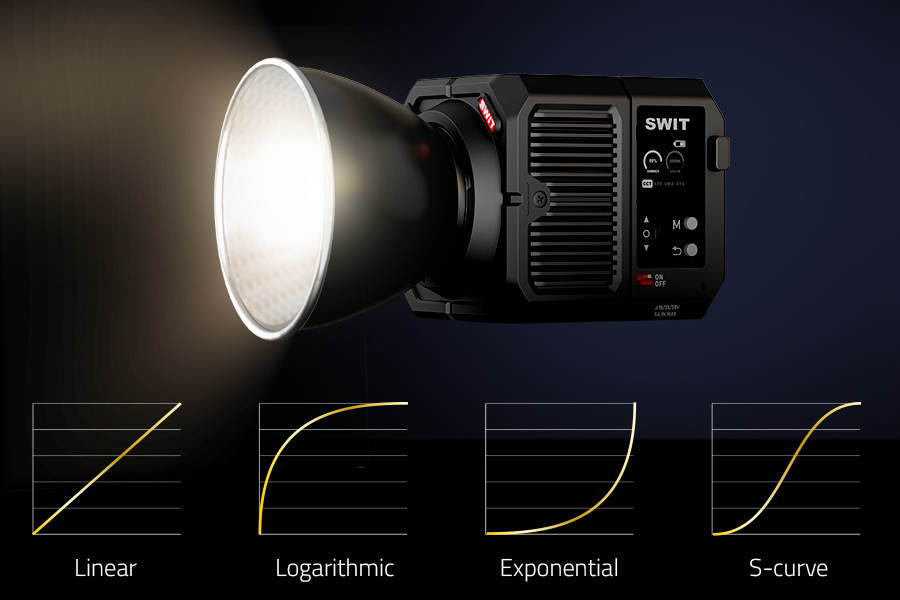

Multiple Dimming Curves Setting
The Mini-150B supports multiple dimming curves: Linear, Log, Exp.,
and S-Curve, ensuring smooth and predictable light output across
the entire range. With a high color rendering index of CRI Ra 98, TLCI
98, and SSI(D55) 73, the light faithfully reproduces the true colors of
the subject, delivering exceptional color accuracy for professional
production environments.

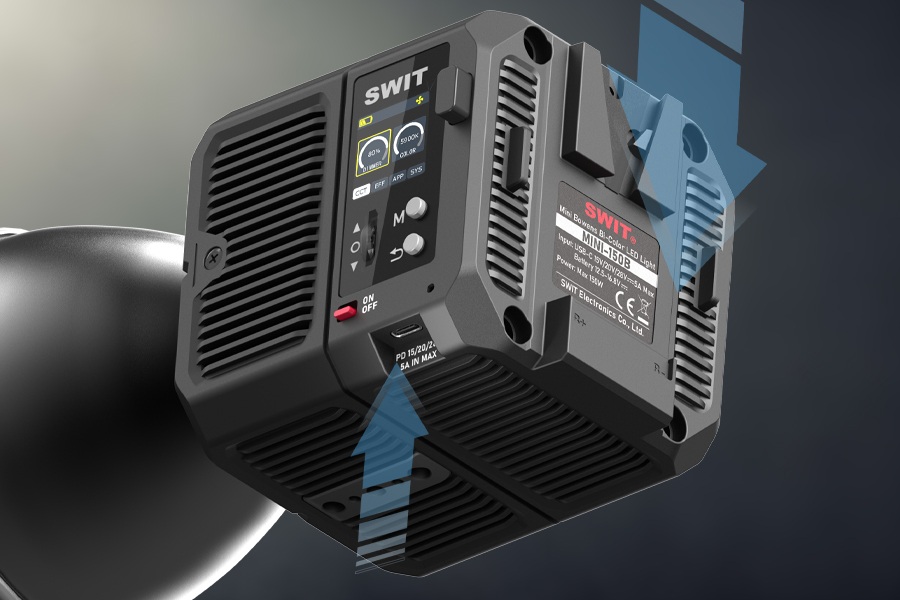

Convenient Power Supply
V-mount and USB-C Power

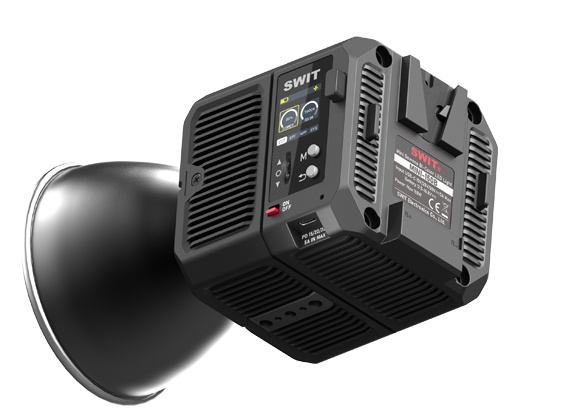

The Mini-150B features an on-board V-mount
plate, allowing you to directly attach a V-mount
battery for power. Additionally, it supports USB-C
power input at 15V/20V/28V, compatible with a
wide range of fast charging protocols including
PD3.1/PD3.0/PD2.0, Samsung AFC and QC2.0/3.0.
With such flexible and convenient power options,
the Mini-150B adapts seamlessly to any shooting
environment, whether you're working in the studio
or on location.

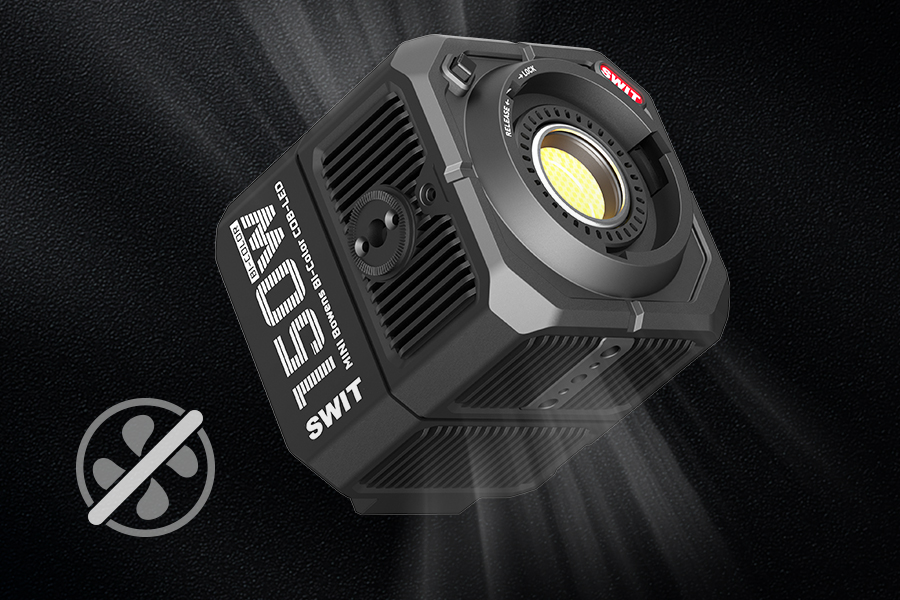

Reliable Heat Dissipation
Support Fan-Off for Complete Silence
The Mini-150B is equipped with a silent fan,
ensuring 7×24 hours of stable full-power output.
In noise-sensitive environments such as
livestreaming, you can manually adjust the fan
speed or even turn it off completely to achieve
absolute silence when needed.

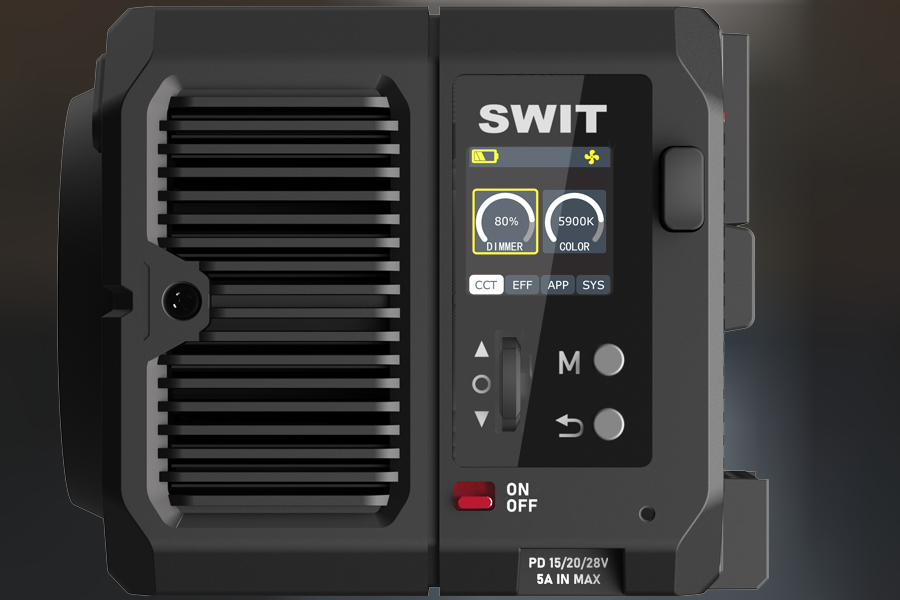

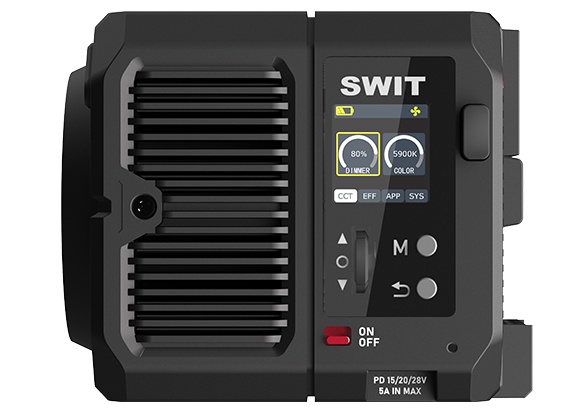

Visualized Control Panel
Quick Operation UI
Upon powering on, the Mini-150B allows
direct dimmer adjustment, with quick
one-press switching to color temp control,
light effects selection and system settings,
as well as battery level, fan status at a
glance. The clean and intuitive display keeps
you focused on shaping your light during a
shoot, not navigating through complex
menus.

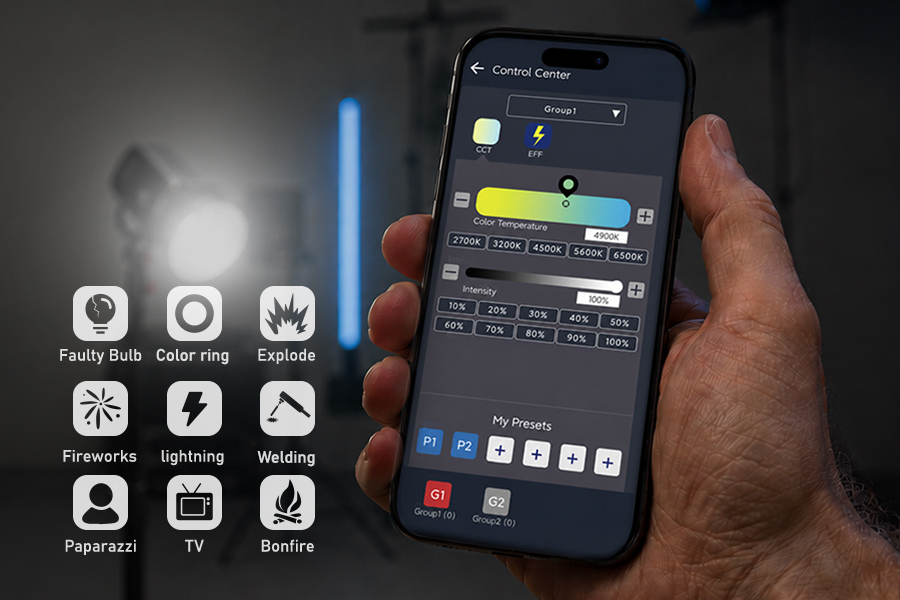

Smart Device Mobile Control
IOS / Android APP Available [Download]
Download the "SWIT Console" app on the iOS App Store
or Google Play to connect and control the light via
Bluetooth. The app provides access to CCT and EFF
modes, group control for multiple lights, as well as
system settings.

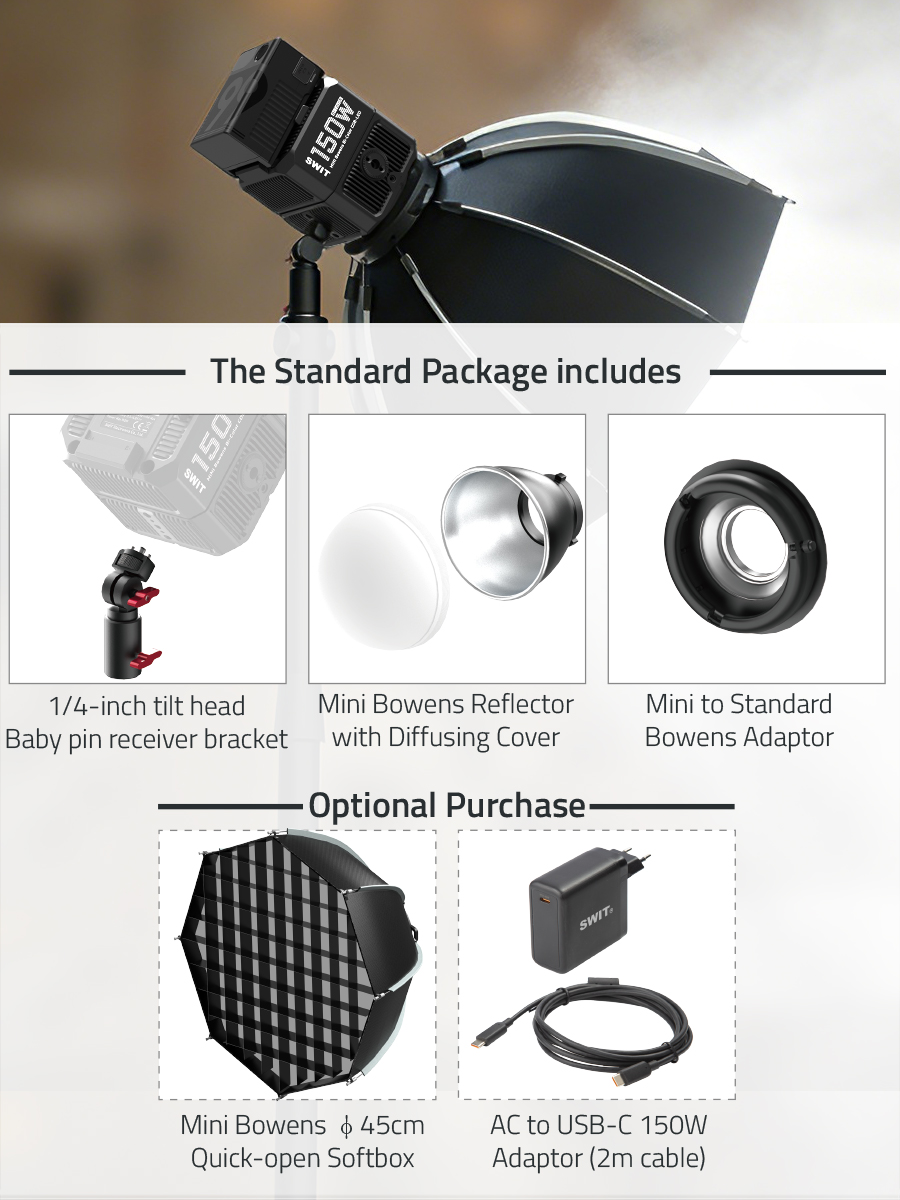

Provide Multiple Accessories
The Mini-150B standard kit comes with a light stand install bracket, a Mini
Bowens reflector, and a Mini to Standard Bowens adapter. For expanded
creative control, a 45cm diameter Mini Bowens quick-open softbox and a
150W USB-C power adapter are also available as optional accessories.
Mount | Mini-Bowens |
Max illuminance | Bare bulb: 5400Lux@1m |
With reflector: 24000Lux@1m | |
With reflector and diffuser: 2000Lux@1m | |
Beam angle | 60° half peak |
Color temperature | 2700K～6500K |
CRI | 98 |
TLCI | 98 |
SSI (D55) | 73 |
Power | 150W Max |
Battery input | V-mount 12-16.8V |
USB-C input | 15V 3A, 20V 3.25A, 28V 5A |
USB-C output | 5V 0.5A |
Dimensions | 104×104×125mm; Package 3×2×3mm |
Weight | Net 1.17kg; With package 1.8kg |
MSRP
MSRP
MSRP
-

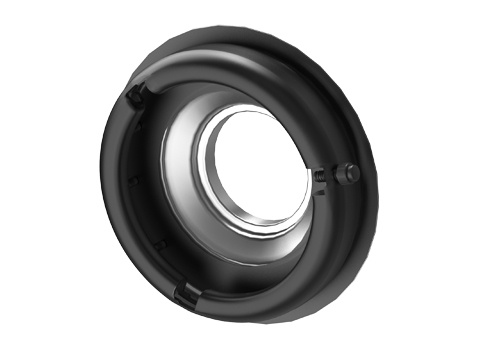

Mini Bowens to Standard Bowens adaptor
-

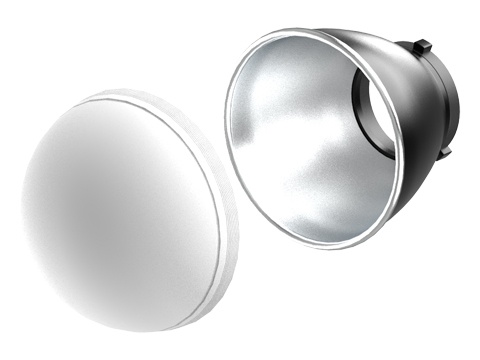

Mini Bowens Reflector and Diffuser
-

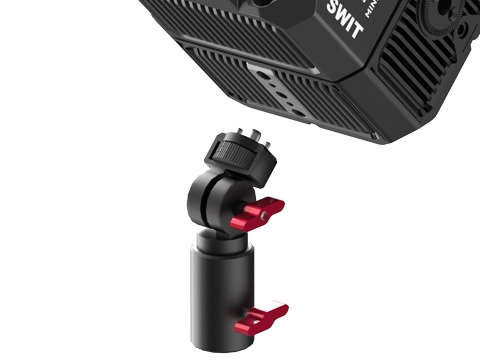

Baby Pin Light Stand Adaptor
-

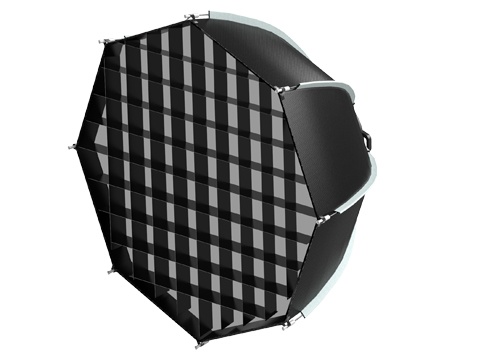

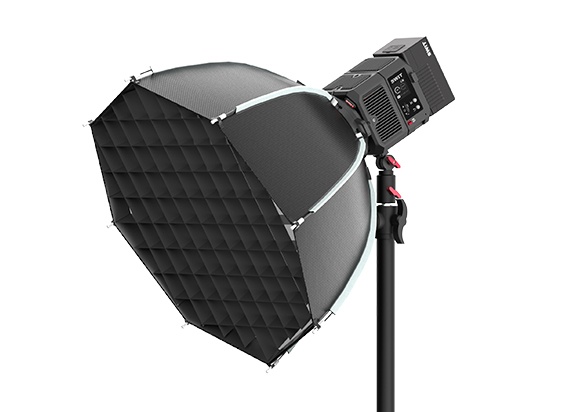

BA-D45M
φ45cm Mini Bowens Mount Quick Open Softbox with Eggcrate -

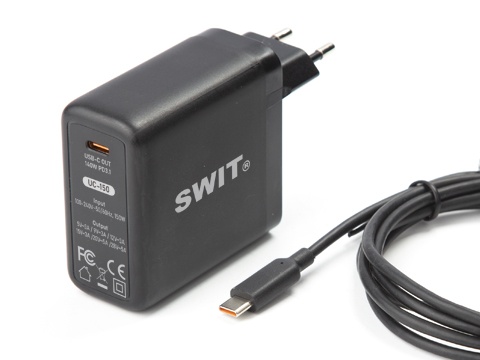

UC-150
USB-C PD3.1 Power Adaptor, AC 100-240V in, USB-C DC 5V/9V/12V/15V 3A; 20V/28V 5A output. With 2 meters USB-C to C cable, US/EU/UK/AU switchable plugs
