› 2-ch simultaneous charging
› Identify battery type and adjust charging method
› 6A fast charging for SWIT particular batteries
› 3A charging for normal batteries
› Support AC to 4-pin XLR output
› Support battery to 4-pin XLR output
› LCD display charging/adapting info

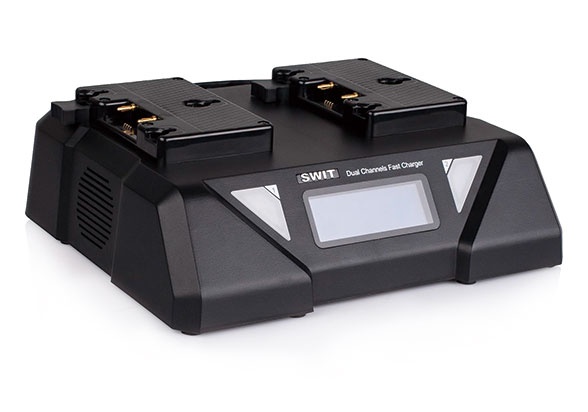

Dual-channel Fast Charger
Max charging current: 6A

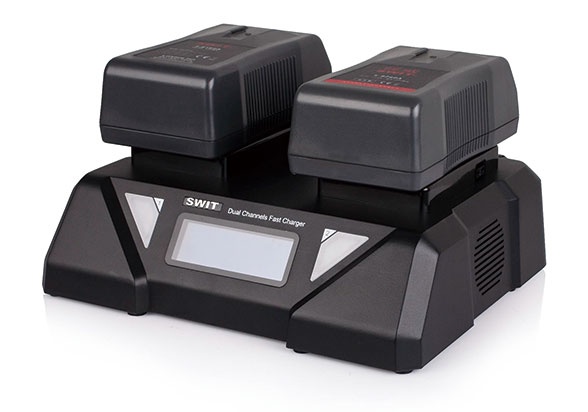

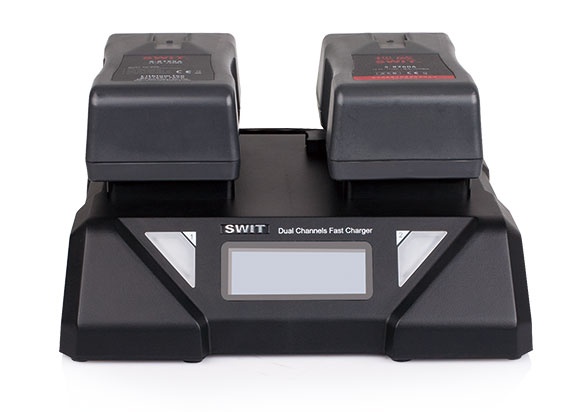

S-3812A can charge 2 Gold mount batteries simultaneously
at Max 6A fast charging current, to SWIT particular batteries.
The charging speed is quite faster than normal chargers.
The following battery models support 6A fast charging: S-8180A, S-8113A, S-8183A+
And for other batteries, the charging current is 3A.
Charging time comparation

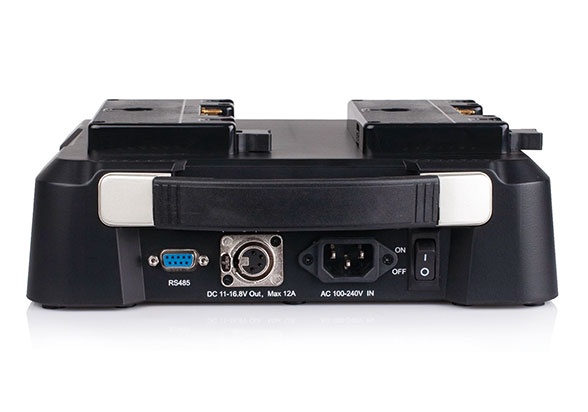

AC-DC Adapting Output
S-3812A supports 1-ch AC-DC adapting output
via 4-pin XLR port. By S-7102 (4-pin XLR female
to male) cable, it can supply 16.8V DC power to
the other equipments, Max load 200W/12A.
When adapting load is less than 100W, S-3812A
can still charge battery simultaneously.
(2 batteries sequential)
Remark: S-7102 cable is optional purchased.
Battery-DC Adapting Output
You can also mount batteries onto S-3812A, and output
DC power via 4-pin XLR port. By S-7102 (4-pin XLR
female to male) cable, it can supply 16.8V DC power to the
other equipments, Max load 200W/12A
Remark: S-7102 cable is optional purchased.
LCD Charging Info Display
S-3812A has an LCD screen to display the real
time charging/adapting information, includes:
Battery Charging/Discharging status
Real time Voltage/Current
Adapting output current and power
3-color LED Indicators
S-3812A has the 3-color LED indicators for both 2 channels:
Red light slowly flashes: The battery is charging
Red light fast flashes:The battery is about to fully charged
Green light constant: The battery is fully charged
Green light flashes: The battery is adapting output
Orange light flashes: Battery or Charger abnormal alert
Input | 100～240VA, 50/60Hz |
Power consumption | Max 260W |
Charging output | DC 16.8V, Max 6A×2-ch |
Adapting output | DC 16.8V, 3A×2 |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Dimensions | 272mm×246mm×97mm |
Net weight | Net 1.85kg; With package 2.45kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

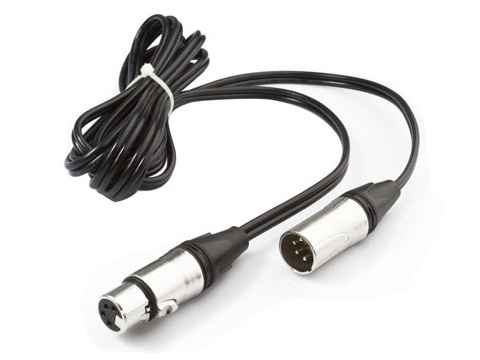

S-7102
4-pin XLR female to male cable, for 4-pin DC adapting output
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
