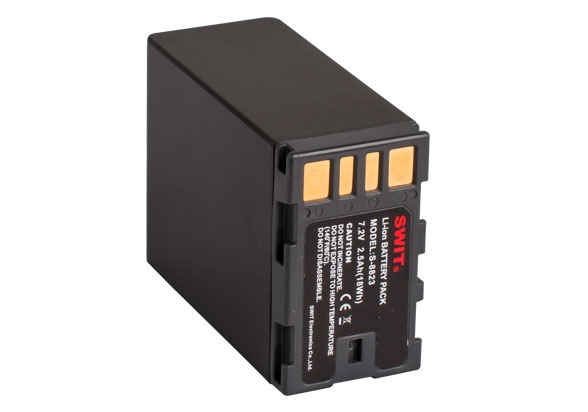

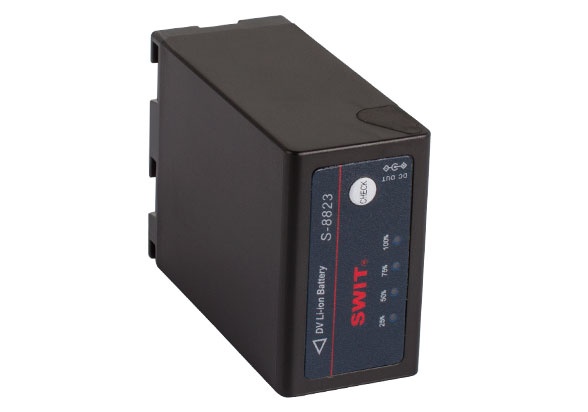

S-8823 JVC HM100 DV Camcorder Battery Pack
› Li-ion battery pack of 7.2V nominal voltage
› Comparable to JVC BN-VF823 DV battery
› Display remaining power info on camera viewfinder
› 18Wh / 2.5Ah capacity
› 4-level LED power indicator
› 7.2V Pole-tap DC output
› Multiple circuit protections
JVC BN-VF823 Comparable Battery
Display remaining power info
S-8823 is the replacement battery for JVC BN-VF823, compatible with JVC
GY-HM100/101 series camcorder. S-8823 can exchange digital info with the
cameras, and display remaining power info on the camera viewfinder.
18Wh / 2.5Ah Capacity
With 7.2V nominal voltage, the S-8823 has 18Wh / 2.5Ah capacity,
and can run approx 2 hours on JVC GY-HM100 camcorder when
LCD monitor is on.
Build-in Pole-tap DC Output Socket
A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8823 battery, for
DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or
wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 15W, 2A.

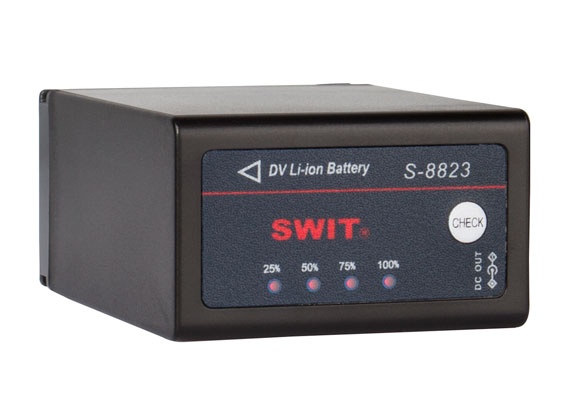

4-level LED Power Indicator
The S-8823 battery has the 4-level LED power indicators to check
the battery remaining capacity. You can get a quick view of capacity
before using.
Easy Charging

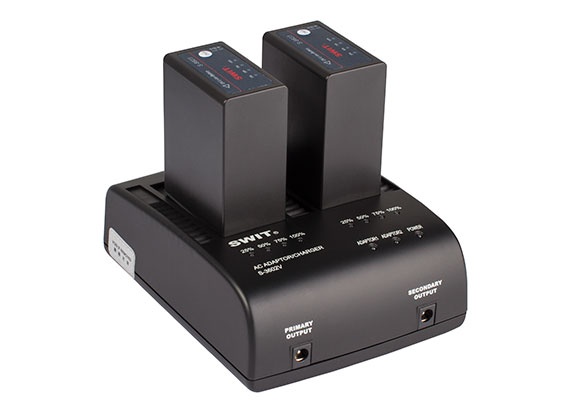

The S-8823 can be charged on SWIT Dual channel charger S-3602V or SWIT 4-ch charger LC-D421. It
takes about 2 hours to charge from empty to 100%.
Nominal Voltage | 7.2V |
Capacity | 18Wh,2.5Ah |
Max output power | Total: 18W,2.5A |
Pins: 15W,2A | |
| Pole-tap: 15W,2A | |
Compatible cameras | JVC GY-HM100/101 |
Dimension | 53×32×72mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 130g; With package0.14kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
We provide 1 year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Battery performance declines, cannot be charged or any charging errors caused by using third-party chargers.
(3) Battery capacity naturally decreased after a certain cycle times of charging and discharging.
(4) The capacity loss caused by over 6-month’s storage, and not charging the battery to re-active it during the period.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
