PA-J610 1-to-6 Power Distribution Box
› 6-Way Power Distribution Box
› Max Current: 20A
› Plug Type: 3-core 16A self-locking aviation plug (safe and controllable) › Max Load: 3500W
› Voltage Input: 110V~240V/50Hz wide voltage
› Shell & Plug: Cast iron housing, fiberglass plug
› Indicator: Power indicator light
› Applications: Theaters, variety studios, live broadcast rooms
6-Way Power Distributor
Group Control, One Light per Line
Stable and reliable power distribution design plays a crucial role in successful lighting solutions. PA-J610 features excellent heat insulation, impact resistance, and flame retardancy. Its appearance is designed to match the installation bracket structure, allowing it to be hung on lighting grilles with lamp hooks for easy installation. As an important adapter accessory for main cable branching during lighting cable routing in TV station studios, the power distribution box solves the problem of traditional high-power lighting fixtures with numerous cables. It is widely used in TV stations, schools, government and enterprise institutions, media convergence centers, small and medium-sized studios, broadcast halls, interview studios, virtual studios, panoramic studios, and photography studios as a specialized power distributor for lighting.

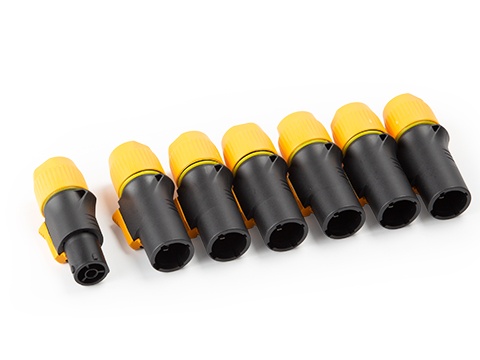

Twist-lock aviation plug interface

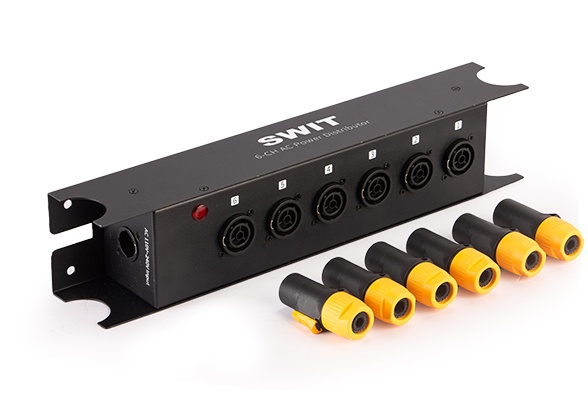

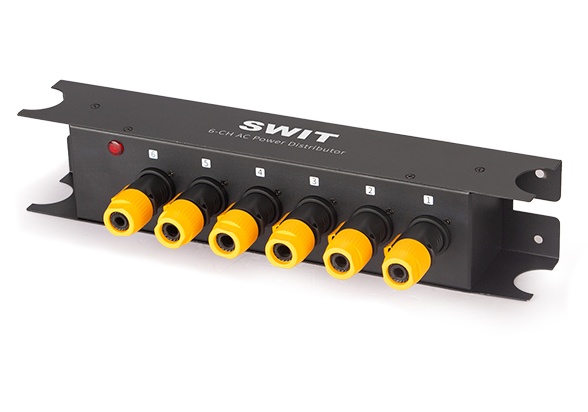

1-to-6 output, max load 3500W
1-in, 6-out. Input: 3×2.5² cable, Output: 3×1.5² cable. 3-core 16A twist-lock power plugs for both input and output. The output of each distribution box can be used to connect lamps in series (no more than 12 lamps within 200W each). In typical studio setups, 6 lamps are usually paired with one power distribution box. This arrangement not only solves the issues of excessive and messy cables and ensures safety but also enables grouped control for easy maintenance.

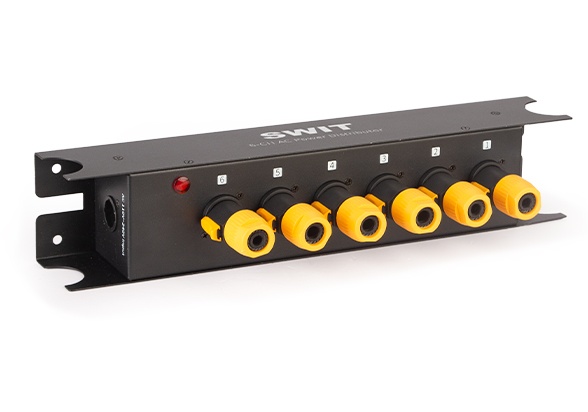

Wide voltage input, safety indicator light.

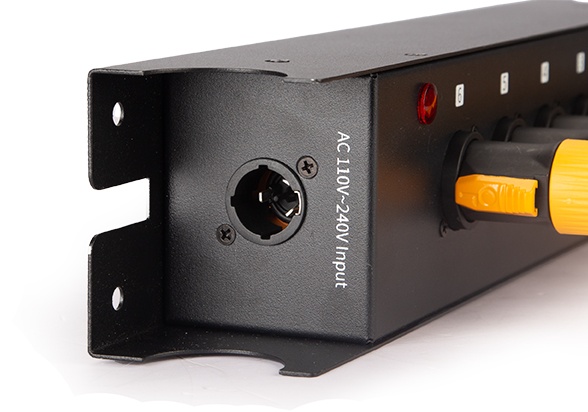

Supports AC110V~240V voltage input
PA-J610 Input: 3×2.5² cable, Output: 3×1.5² cable, equipped with 3-core 16A twist-lock power plug.Each distribution box is fitted with a power indicator light: the light turns on when power is input, and turns off when power is disconnected. This allows construction personnel to visually and accurately identify the power status, enhancing safety.
