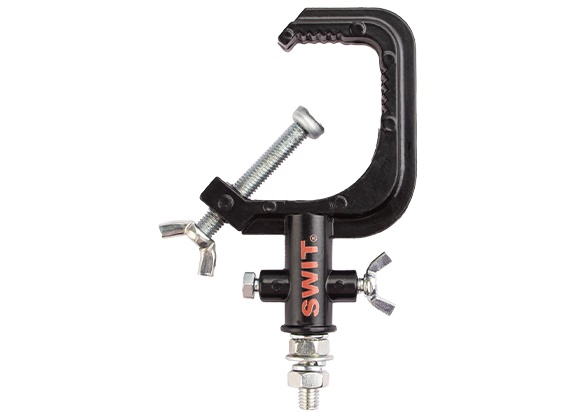

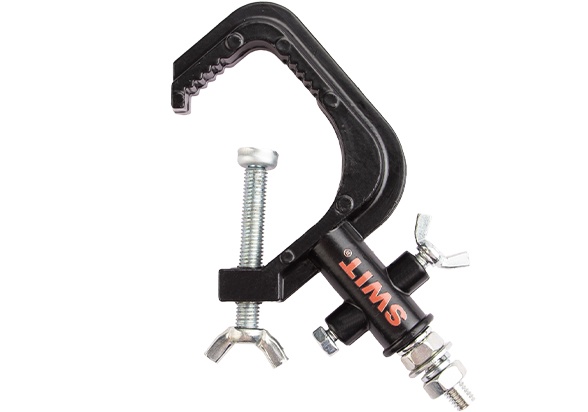

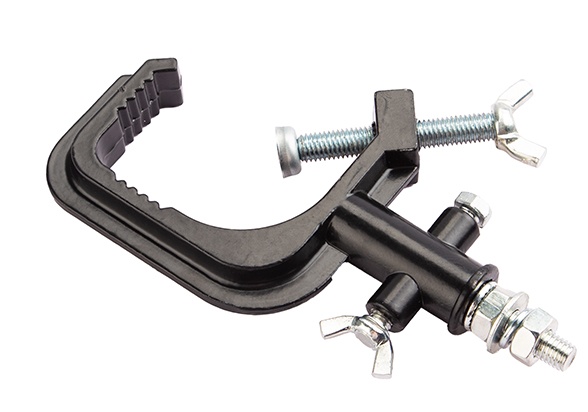

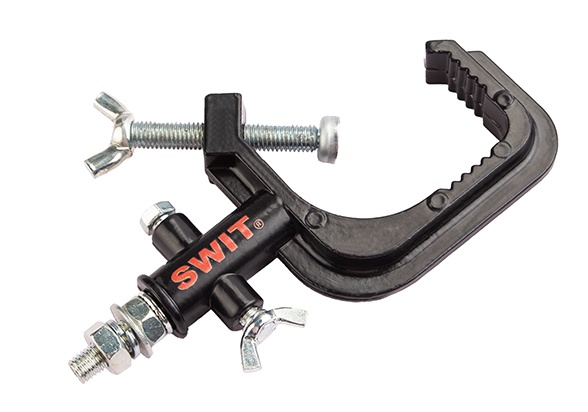

GA-DG75 75kg Load Studio Light Hook
› Aluminum alloy hook for studio lights
› Strong 75kg load
› 30-51mm Diameter Truss Fit
› Jagged indentation to enhance friction
› Screw bolt and M8 nut connection
› Connect with studio light directly
› Connect with pantograph
75kg Strong Load
GA-DG75 studio light hook, aluminum alloy, exceptional 75kg load performance and is widely used in the suspension installation of lighting equipment in variety show studios, live streaming rooms, virtual studios, and other lighting projects.
30-51mm Diameter Truss Fit
The GA-DG75 hook ensure a perfect fit for the trusses with a diameter of 30~51mm. The special indentation design in the teeth enhances the stability of the lamp hook's contact with the truss. It comes with a screw bolt and M8 nut to connect with light or pantograph.
Connect with Light
The hook provides a screw bolt and a nut on the bottom side. You can fix it on the yoke of studio light fixtures conveniently.
* Please remove the baby pin socket on the yoke of SWIT lights, and then install the hook.
Connect with Pantograph
The GA-DG75 hook fits SWIT pantograph GA-PT20P/30P, GA-PT20E/30E, easily fixed by screw bolts.
Model | GA-DG75 |
Max load | 75kg |
Fir truss diameter | 30-51mm |
| Bottom screw bolt | M8×60mm |
Dimension | 185×97×25mm |
Net weight | 0.3kg |
