› Aluminum heavy load light stand
› With steal wheels for easy moving
› Both Baby pin & Junior pin head
› Retractable magic boom arm 118-208cm
› 5 sections φ4.8cm/4.2cm/3.5cm/3cm/2.5cm
› Max working height 14.4ft/4.4m
› Folding height 5.6ft/1.75m
› Weight 18kg, Max Load 20kg
Heavy Load Light Stand

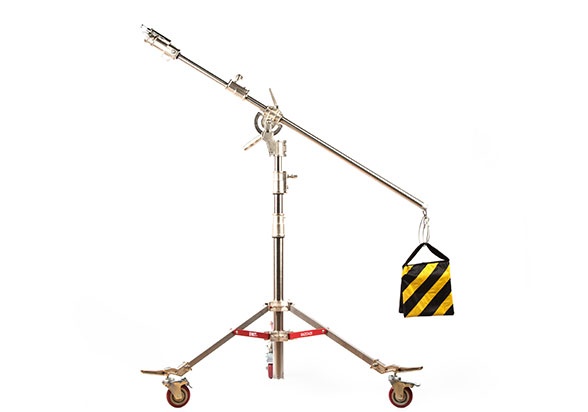

MAGIC4420 is a heavy load wheeled light stand with magic boom
arm for cine industry light fixtures. It has 5 sections, working height
from 175cm to 440cm, and max load is 20kg.

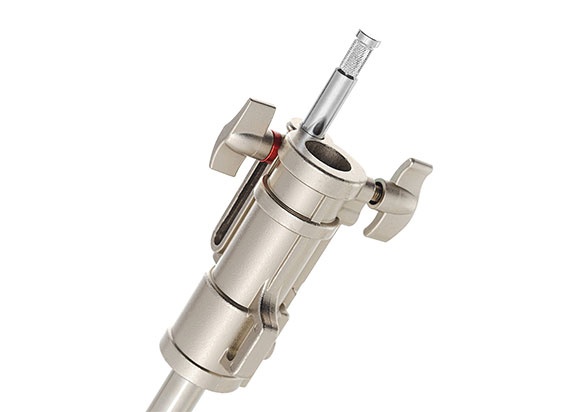

5/8” Baby Pin and 1-1/8” Junior Pin
MAGIC4420 provides 1-1/8” (29cm) Junior Pin Female head and
retractable 5/8” (16mm) Baby Pin Male head, for cine lights install.

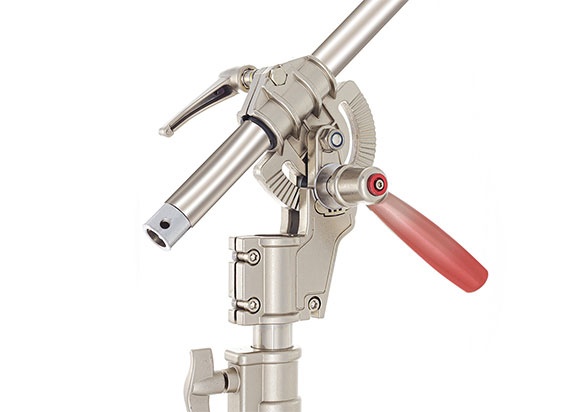

Magic Boom Arm
You can pull out the boom arm from the
main rod, and rotate the boom arm at
any angle to set the light. Retract the
Magic Boom Arm into the main rod to
get 14.4ft/4.4m Max height.

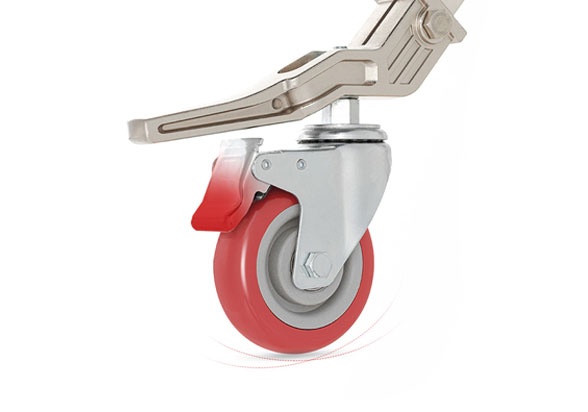

Buckled-lock Wheels
MAGIC4420 comes with 3x buckled-lock wheels for
easy moving with heavy light fixtures on the filmset.
Packing Parts
Material | Aluminum alloy |
Sections | 5 sections, φ4.8cm/4.2cm/3.5cm/3cm/2.5cm |
| Fold height | 175cm |
Max height | 440cm |
Camera connect | 5/8" Baby pin male and 1-1/8" Junior pin famale |
Load | 20kg |
Weight | Net 18kg; With package 19.6kg |
