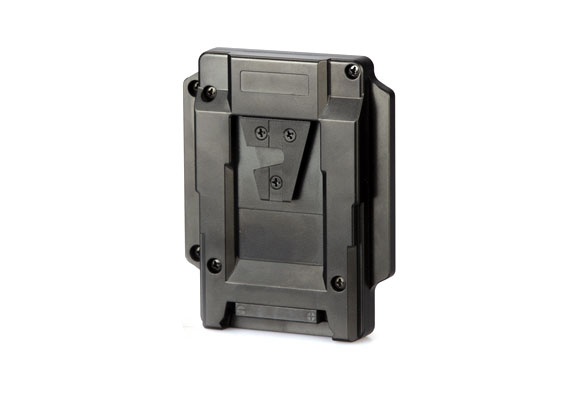

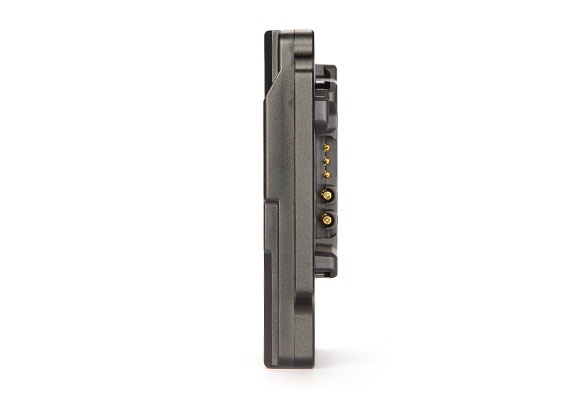

KA-S21B B-mount battery to V-mount 28.8V Plate
› V-mount device to use B-mount battery
› 28.8V (21.6-33.6V) input & output
› SWIT HB-A290B and BIVO series compatible
› RED V-Raptor XL 28.8V power solution
› Thinner and light weight

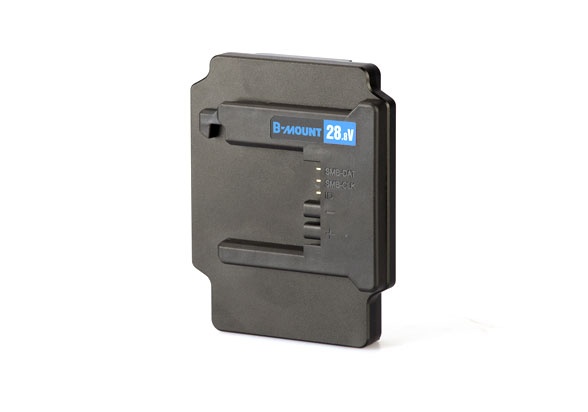

B-mount to V-mount 28.8V
KA-S21B conversion plate is to use the B-mount
battery to power V-mount cameras or other devices.
The ID pin of the B-mount plate is 28.8V, so the
V-mount output voltage is 21.6-33.6V range. Please
make sure the V-mount cameras or devices support
up to 33.6V input.
RED V-Raptor XL Power
The RED V-Raptor XL needs 28.8V high voltage
power input to enable the various DC out
sockets on the camera.

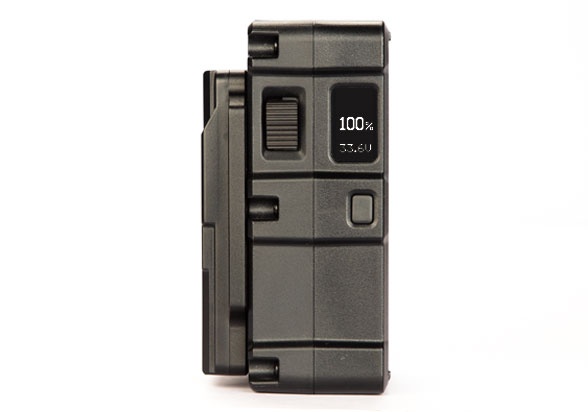

Use B-mount batteries and the KA-S21B plate
will power RED V-Raptor XL at 21.6-33.6V, to
active the full functions of the camera, and
avoid misuse on other cameras.
Power RED XL by B-mount Batteries
Use SWIT B-mount batteries, including HB-A290B, BIVO-98, BIVO-160,
BIVO-200, BIVO-290, and the KA-S21B plate, to power RED V-Raptor XL
at 21.6-33.6V high voltage.
Battery side | B-mount |
Camera side | V-mount |
Input/Output voltage | 28.8V (21.6-33.6V) |
Compatible batteries | HB-A290B, BIVO-98, BIVO-160/200, BIVO-290 |
