› Dedicated for Alexa MINI / MINI LF install
› B-mount battery attach
› 8-pin LEMO output to camera
› 28V, 32Wh 3Ah battery cells inside
› 200W constant high load
› At least 2 minutes run time
› 120 seconds countdown display
› 2x D-tap regulated 14V output
› 1x 2-pin LEMO regulated 14V output
› USB 5V/2A x1 power output
› 22-33.6V 8-pin input for power station hotswap
› Aluminum CNC unibody housing
› Multiple circuit protections

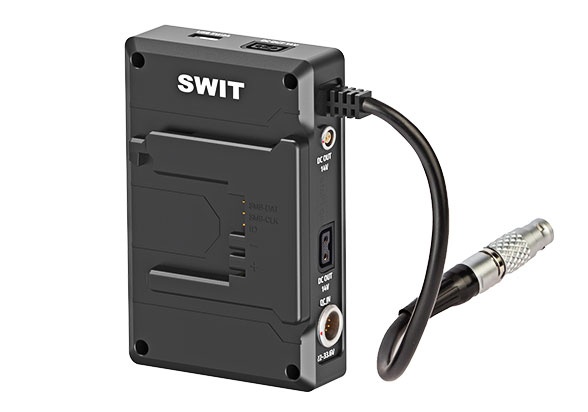

B-mount Hot-swap Plate
KA-R30B is a B-mount hot-swap plate for ARRI
Alexa MINI / MINI LF install, power cameras at
28.8V (22-33.6V) by 8-pin DC-IN. When remove the B-mount battery, 8-pin DC output Reg. 28V for hotswapping. You don’ t need
to switch off the camera when changing battery.

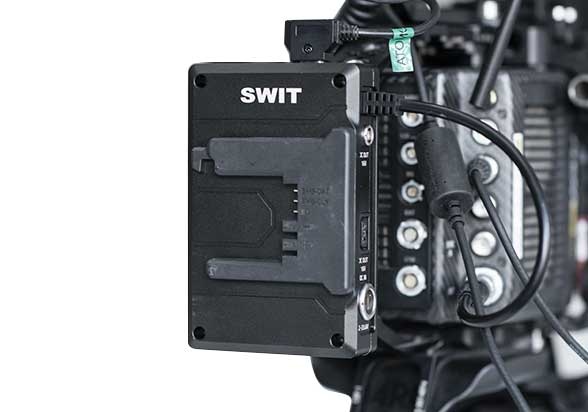

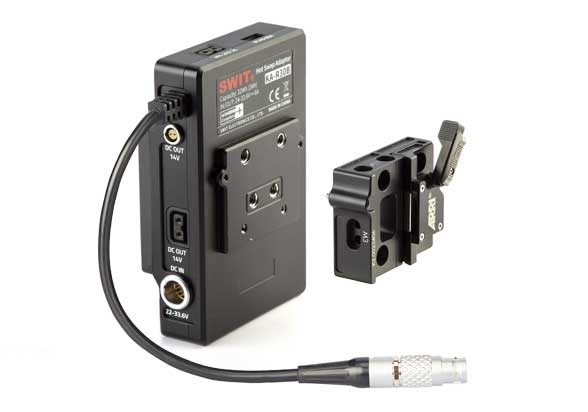

ALEXA MINI/MINI LF install
KA-R30B matches with ARRI original MINI / MINI LF
support system by connection with RAB-1 Clamp 2
(K2.0023406).
* KA-R30B doesn’ t include the K2.0023406 clamp.
2mins at 200W load
KA-R30B has 32Wh/3Ah battery cells inside,
200W constant high load, even after 1000
cycle times, the plate can still ensure 2
minutes hot swap time for changing battery.

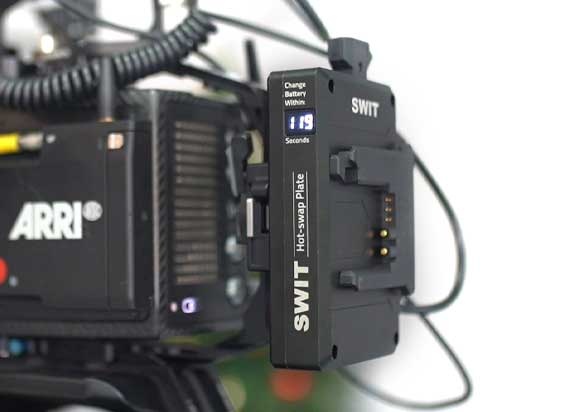

120s Countdown Display
KA-R30B provides an LCD screen to display
countdown seconds when changing battery. When
battery is removed, the screen will countdown
from 120 seconds. You just need to put on a new
battery before it count down to 0.
The new battery will charge the hotswap plate as
well. You can see the countdown seconds will go
back to 120 after a period of time.
Power Interfaces
KA-R30B provides:
1x 8-pin 28V to ALEXA MINI/MINILF
2x D-tap 14V Reg. output
1x 2-pin LEMO 14V Reg. output
1x USB-A 5V/2A output
1x 8-pin 22-33.6V input (For power station hotswap)

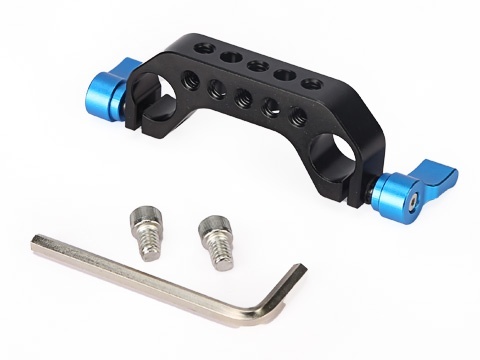

15mm Rod Adaptor
KA-R30B provides with a free 15mm Rod
Adaptor in the package, to install on the old
style ALEXA MINI 15mm rig system.
Inner battery voltage | 28V regulated |
Inner battery capacity | 32Wh/3Ah |
Power load | 200W constant high load |
8-pin LEMO output | Attach battery: 22-33.6V to camera Remove battery: 28V / 200W to camera |
D-tap output x2 | 14V regulated, 70W |
2-pin LEMO output | 14V regulated, 70W |
USB-A output | 5V, 10W/2A |
8-pin LEMO input | 22-33.6V |
Dimensions | 93×143×43.5mm |
Net weight | Net 730.5g; With package0.95kg |
