EC-N200 NDI Codec Camera Adaptor

› Encode camera 3G-SDI to high bandwidth NDI®

› Decode PGM NDI® source to HDMI® output

› Local video and PGM return video switching

› Intercom with ET-N80 control panel

› Intercom mute, call, headphone connector

› On-board TALLY and external TALLY light

› DC 11-17V 1.5A and V-mount power input

› Support 42-57V 0.5A PoE power input
› Provide clamp to fix RJ45 network cable

› 15mm rod rail system to install ENG cameras

› Webserver configuration and firmware update

Features

NDI® EFP Production System

EC-N200 is the camera adaptor of SWIT NDI® EFP Multi-camera Production System. The camera adaptor will encode camera SDI to high bandwidth NDI®, and also decode PGM NDI® source to display as return video. The system has on-board and external TALLY light and support full duplex intercom between cameramen and director.

Full Duplex Intercom

The camera adaptor EC-N200 supports 5-pin headset connection, and working together with SWIT ET-N80 Intercom control panel, the system supports full duplex intercom between director and cameramen. You can control intercom volume and initiate the call to director on the camera adaptor.

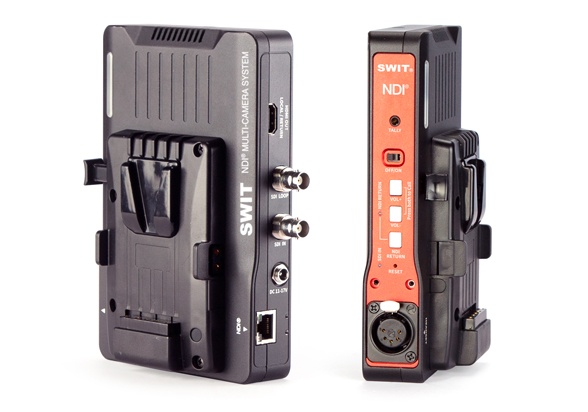

Interfaces

The EC-N200 camera adaptor supports 3G-SDI input and loop out, high bandwidth NDI® connected to the network, and HDMI® monitor output for local video and return video.
The camera adaptor provides 5-pin XLR headset connector and 3.5mm jack for external TALLY light, powered by V-mount or Gold mount, or through 5.5mm DC-IN, or powered by PoE.

TALLY Lights

There’ s an on-board bi-color TALLY light to display Red (PGM); Green (PVW). The package also provides an external TALLY light to install on the front of the camera, for the anchor.

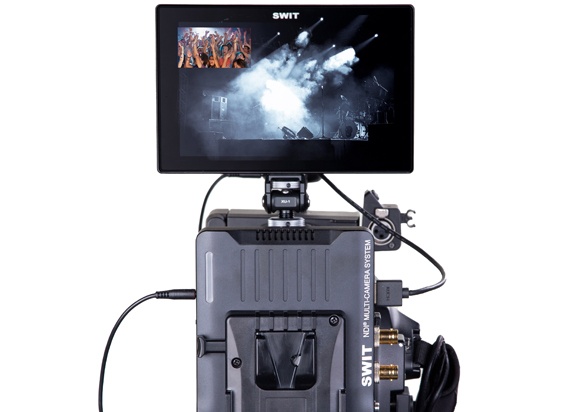

Return NDI® Video Switch

The camera adaptor also decode the PGM NDI® source and output through HDMI®. You can use any monitors with HDMI® to display local video and return video in Pic-in-Pic mode, or full screen return video mode, by press the Return button on the camera adaptor.

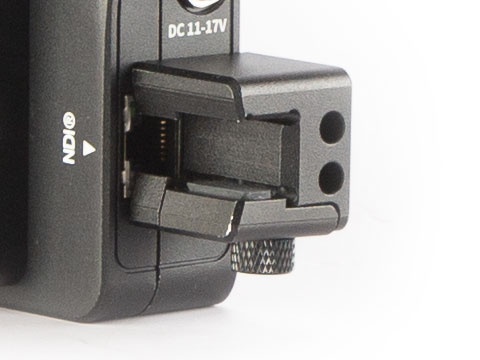

RJ45 Cable Clamp

The camera adaptor provides a clamp to fix any standard RJ45 cables, which ensure the reliability of connection during video productions.

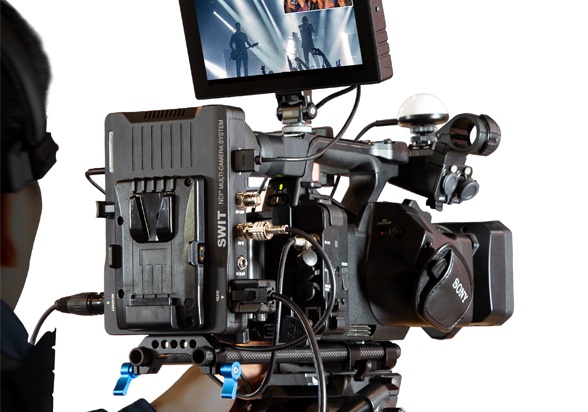

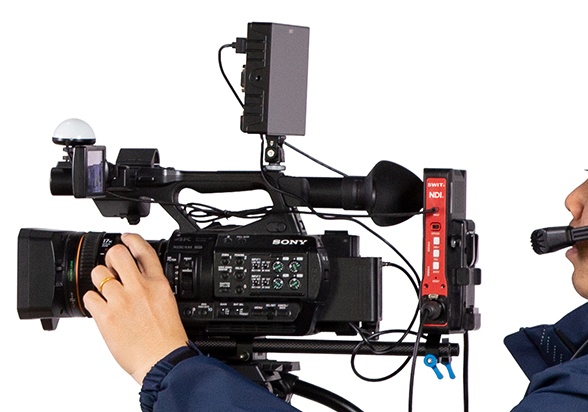

15mm Rod System

The EC-N200 camera adaptor package provides the 15mm Rod system to install between camera and tripod. The Rod system is universally compatible with all kinds of ENG cameras and video tripods, and easy to install.

System Diagram

Video Input

3G/HD/SD-SDI ×1

Video Output

3G/HD/SD-SDI ×1

HDMI® ×1

High bandwidth NDI ×1

SDI Format

1080p (60/59.94/50/30/29.97/25/23.98);

1080i (60/59.94/50);

720p (60/59.94/50)

NDI Format

1080p (60/59.94/50/30/29.97/25)

1080i (60/59.94/50)

720p (60/59.94/50)

HDMI® Format

1080p (60/59.94/50/30/29.97/25/23.98);

1080i (60/59.94/50)

720p (60/59.94/50)

NDI bandwidth

1080p 150Mbps - 200Mbps

NDI Codec latency

60ms

DC/Battery Input

11-17V, 1.5A

DC output

14.4V D-tap×1

8.4V(Reg) 3A Pole ×1

PoE Power Input

42-57V, 0.5A

Power Consumption

16W

     Working Temperature0-40°C
     Dimension

139.23×176×52.5mm

Net weight

742g
Basic Package

MSRP

MSRP

MSRP

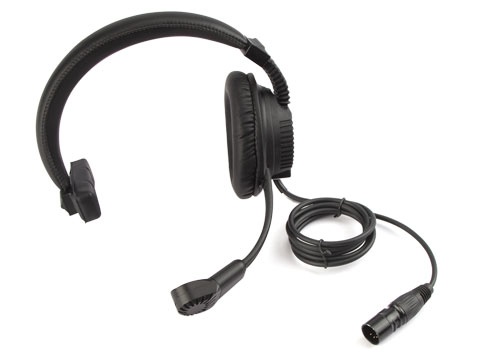

  • 5-pin single ear headset

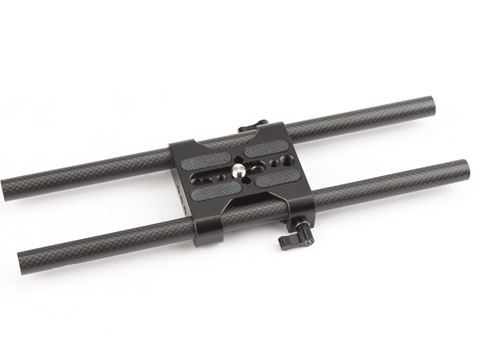

  • 15mm rods rail with camera base

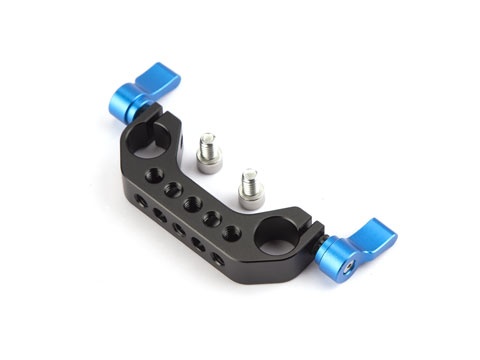

  • 15mm rail clamp (Pre-installed)

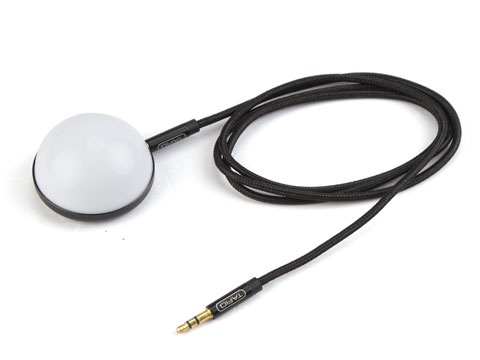

  • External Tally Light with cable and codeshoe

  • RJ45 network cable fixer (Pre-installed)

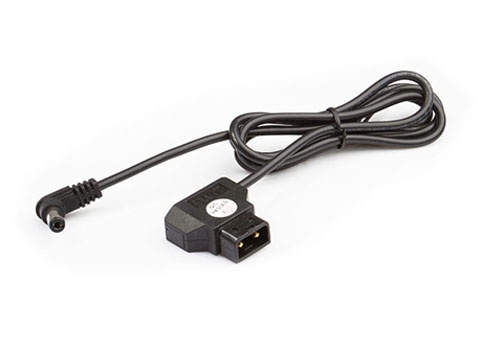

  • D-tap to 5.1/2.1mm DC cable

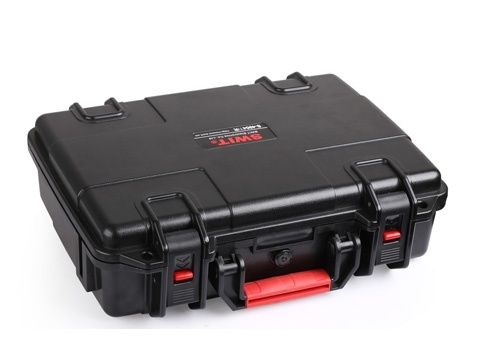

  • Carrying case
